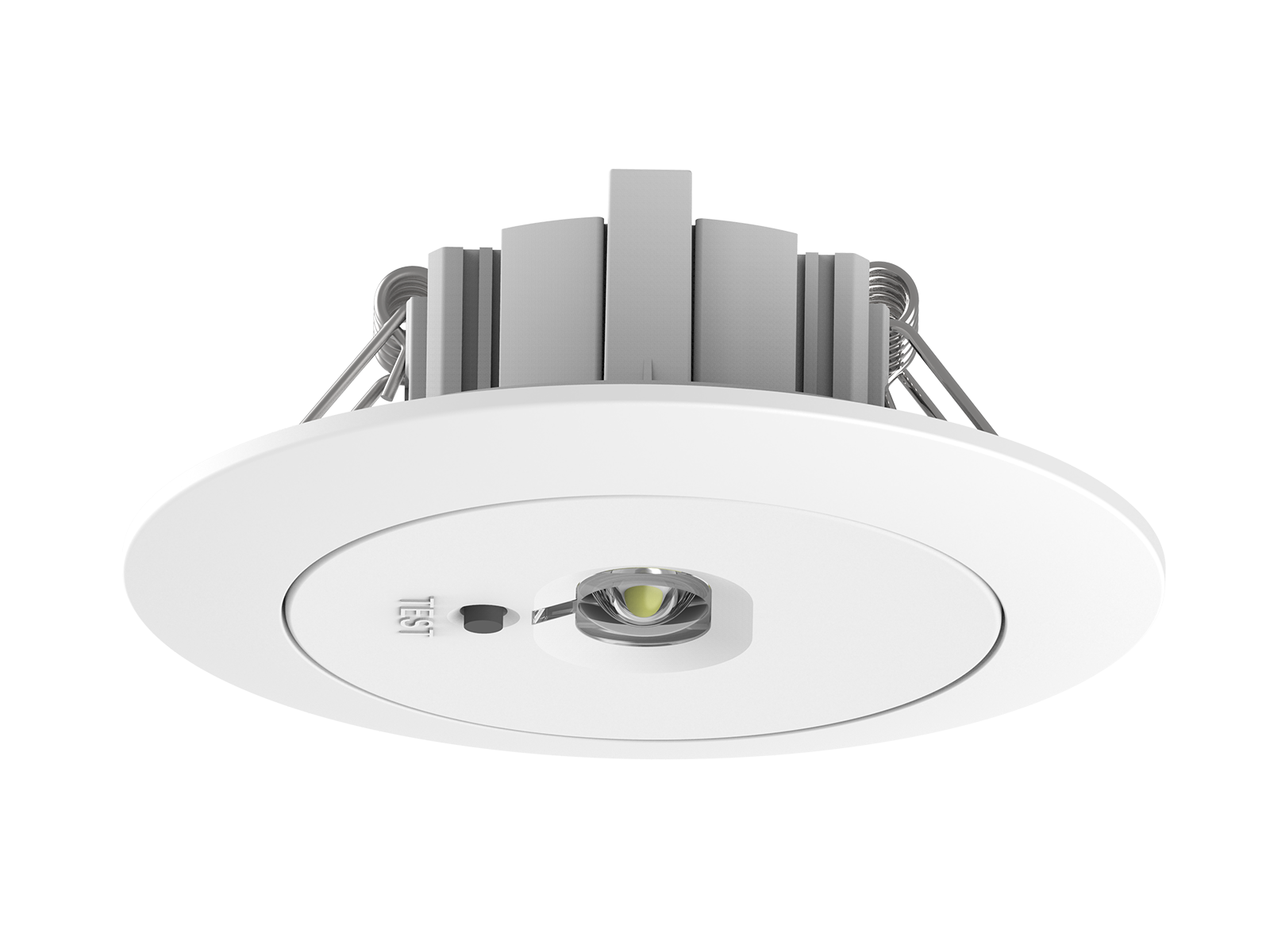

EPE-3W-EM LED Emergency Downlight

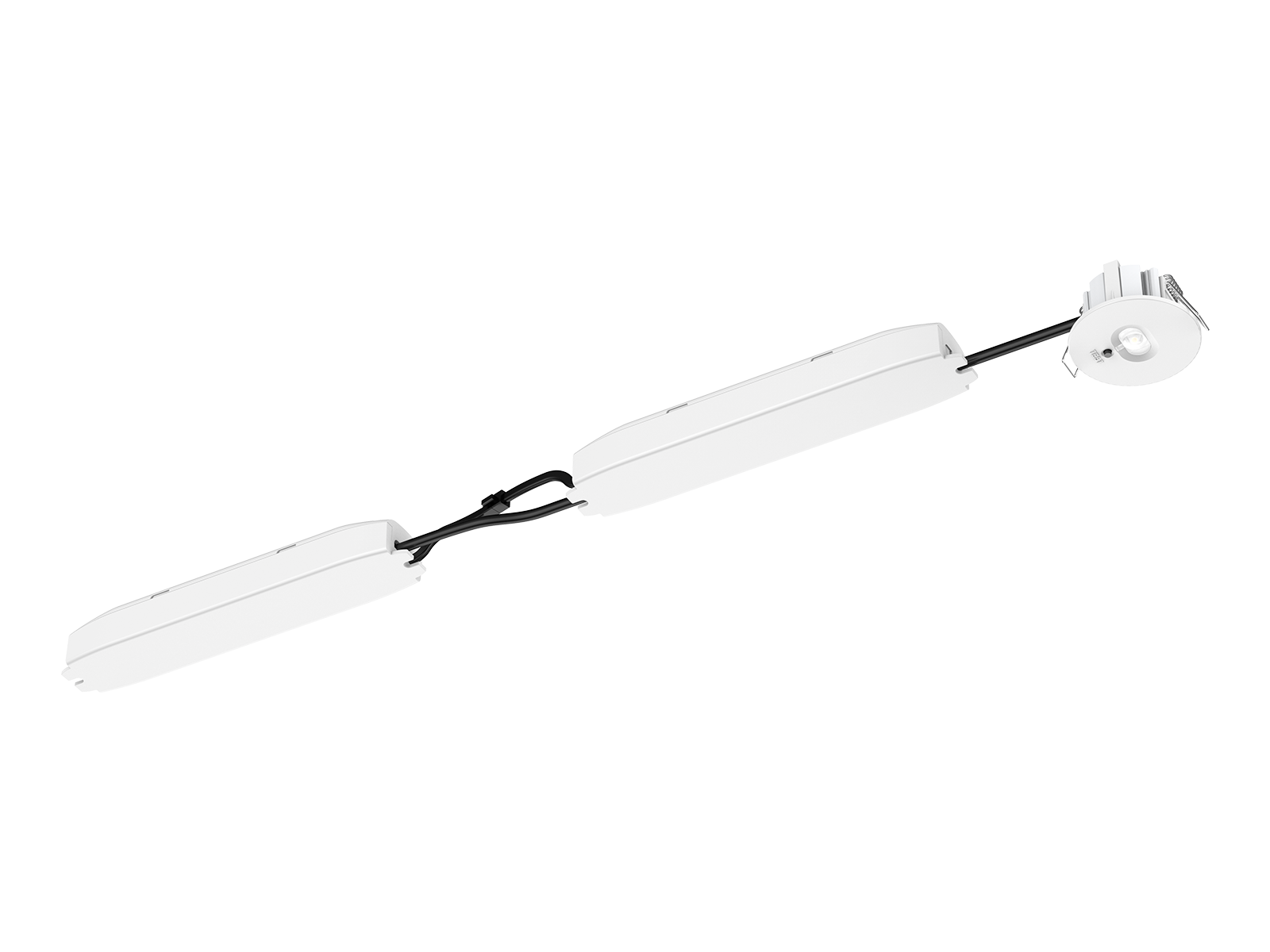

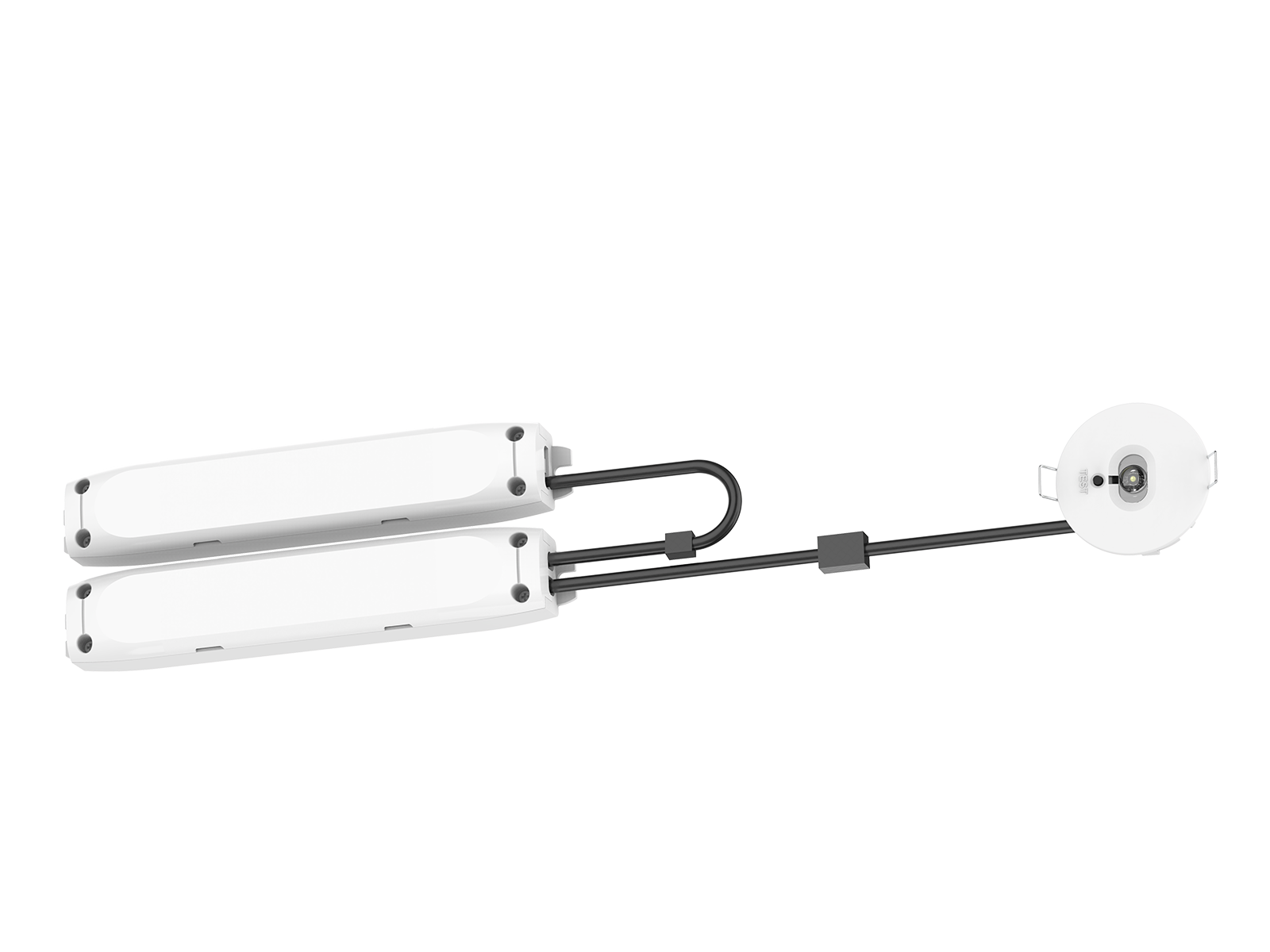

EPE-3W-EM Emergency down light is controlled by smart IC, with self-test function.Two optional lens (oval&round shape) for different applications. It has removable front cover design, adapter ring available. With external driver and external battery in separated,convenient for maintenance.

Oval lens for escape route application.
Round lens for open area application.
High power & efficiency LED.
LiFePO4 battery, long life time.

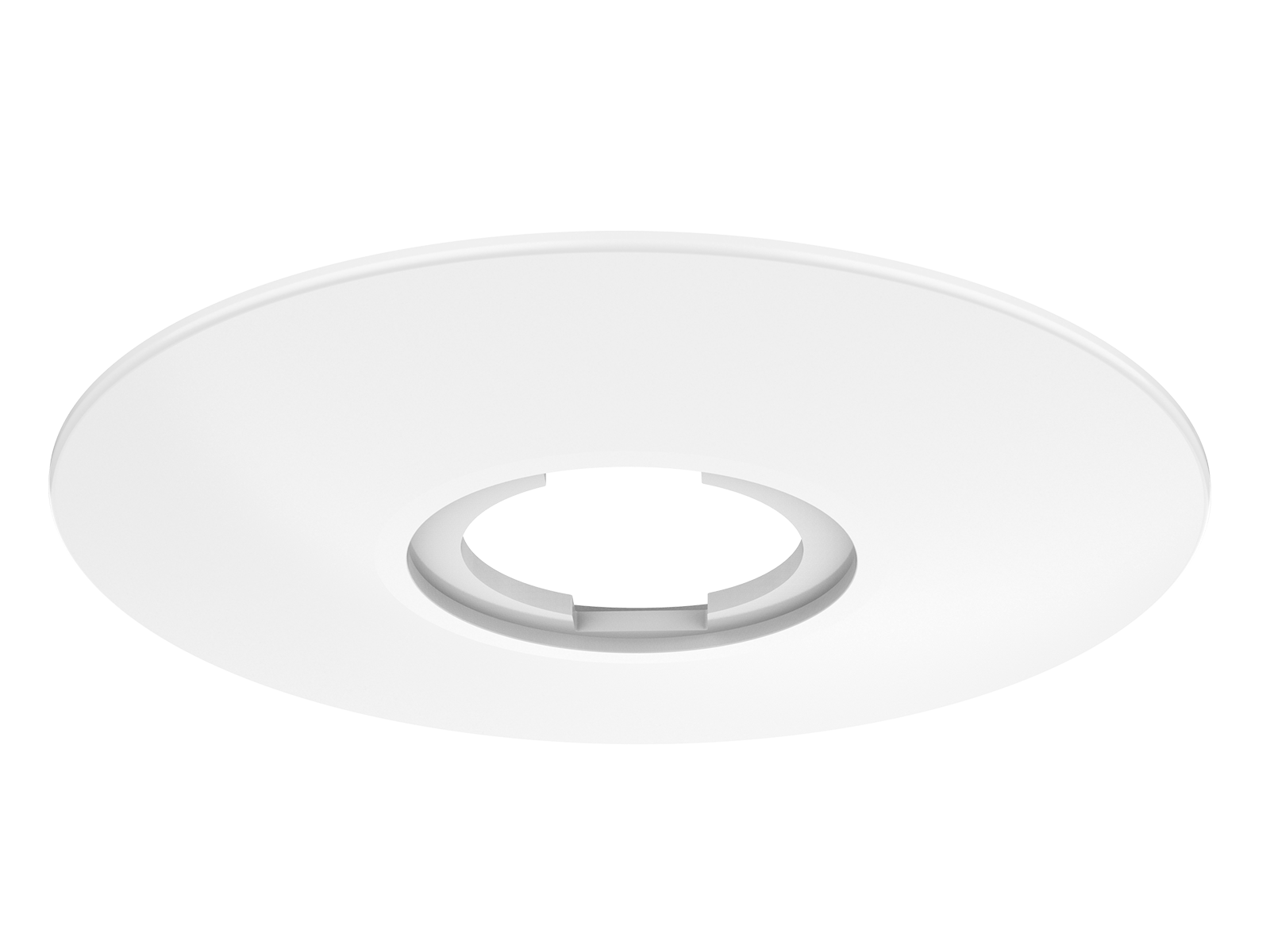

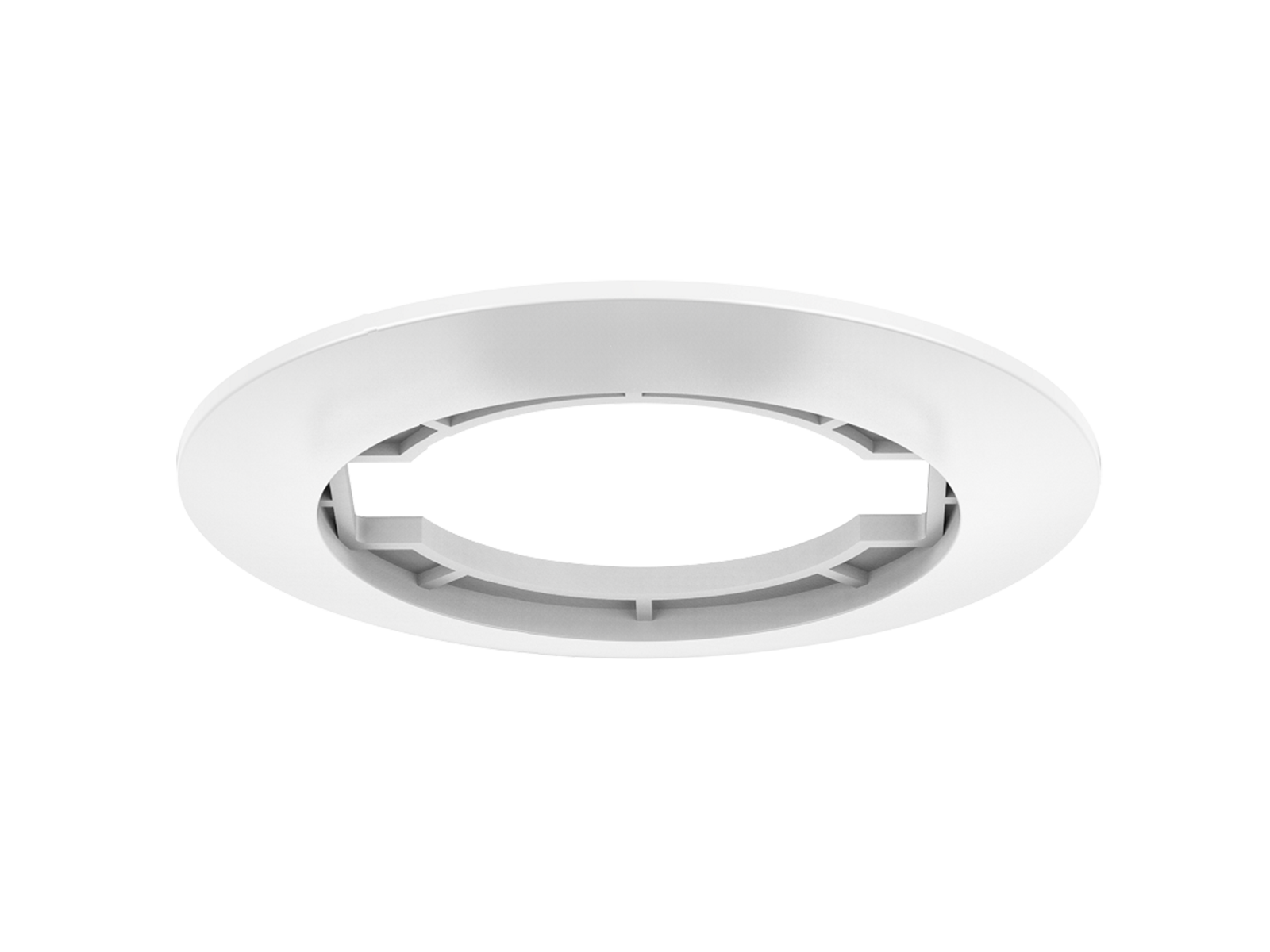

80mm adapter ring for bigger cuthole included.

Datasheet

Model	Input Voltage	Mains Power	Emergency Power	Charge Duration	Discharge Duration	Battery	Test Mode
EPE-3W-EM-MT-1H	200-240VAC 50/60Hz	3.5W Max	2W Max	24H	1H	LiFePO4 6.4V600mAh	Manual Test
EPE-3W-EM-MT-3H	200-240VAC 50/60Hz	3.5W Max	2W Max	24H	3H	LiFePO4 6.4V1500mAh	Manual Test
EPE-3W-EM-AT-1H	200-240VAC 50/60Hz	3.5W Max	2W Max	24H	1H	LiFePO4 6.4V600mAh	Auto Test
EPE-3W-EM-AT-3H	200-240VAC 50/60Hz	3.5W Max	2W Max	24H	3H	LiFePO4 6.4V1500mAh	Auto Test

EPE-3W-EM
